DYNAMIC SUSPENSION MOUNTS

ELIMINATE SHOCK AND VIBRATION

Dramatically increase the range and performance of high magnification PTZ cameras!

Improve machine vision and data acquisition in high vibration environments!

Gyromounts.com Gyroscopic Dynamic Suspension Mounts use Kenyon Laboratories mechanical

gyro-stabilizers and the principal of Gyroscopic Vibration Absorption to virtually eliminate shock and

vibration generated from machinery and environmental conditions.

The gyro works together with a 6-Axis Critically Damped Suspension

to compensate for multi-directional movements, shock, and vibration.

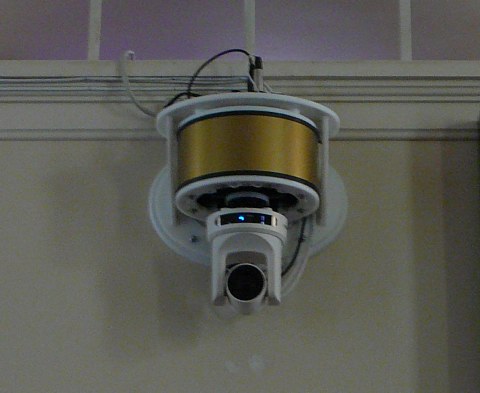

The suspension system can be used in a passive configuration (no gyro) for church mount applications.

It can be used as a "Fixed Mount" for seismic vibration, machine induced vibration, balcony vibration, tower mount ...

It can also be used in moving land, sea, and air applications as a "Vehicle Mount".

The same mount can be used with the camera mounted on top (Horizontal) or mounted to the bottom (Vertical).

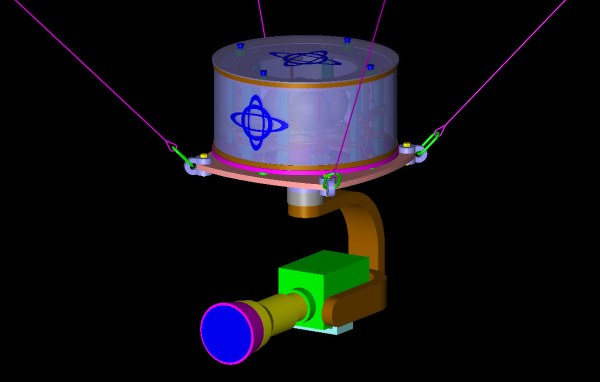

The "Vertical" configuration allows for inverted mounting of digital cameras,

PTZ cameras, scanners, projectors, lasers, and sensitive instrumentation.

Protective enclosures are available to fit your application.

Custom sizes are available for a payload capacity of up to 130 pounds.

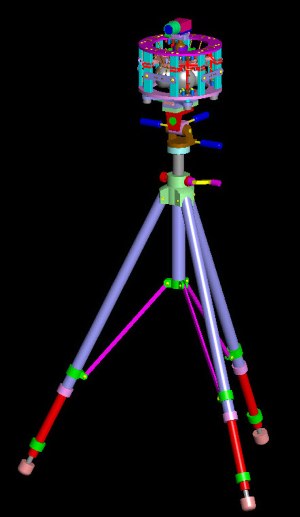

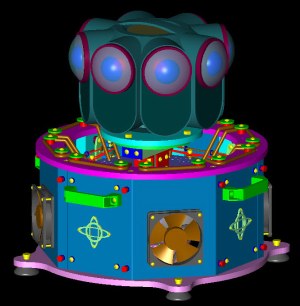

HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL
DSM-8-6XS (PASSIVE) INCLUDES: CAMERA MOUNTING BRACKET, TRIPOD MOUNT, TOOL KIT, USERS MANUAL ------------------------------------ $1,500 STABILIZATION CAPACITY: 0 - 5 POUNDS	DSM-12-6XS INCLUDES: CAMERA MOUNTING BRACKET, TOOL KIT, USERS MANUAL ------------------------------------ $2,400 + GYRO STABILIZATION CAPACITY: 0 - 8 POUNDS WITH KS-3X3 GYRO	DSM-14-6XS INCLUDES: CAMERA MOUNTING BRACKET, TOOL KIT, USERS MANUAL ------------------------------------ $2,900 + GYRO STABILIZATION CAPACITY: 0 - 8 POUNDS WITH KS-3X3 GYRO 0 - 10 POUNDS WITH KS-6X6 GYRO 0 -15 POUNDS WITH KS-8X8 GYRO	DSM-16-6XS INCLUDES: CAMERA MOUNTING BRACKET, REMOVABLE COVERS, TOOL KIT, USERS MANUAL ------------------------------------ $4,200 + GYRO STABILIZATION CAPACITY: 0 - 8 POUNDS WITH KS-3X3 GYRO 0 - 10 POUNDS WITH KS-6X6 GYRO 0 -15 POUNDS WITH KS-8X8 GYRO	DSM-18-6XS INCLUDES: CAMERA MOUNTING BRACKET, REMOVABLE COVERS, TOOL KIT, USERS MANUAL ------------------------------------ $4,800 + GYRO STABILIZATION CAPACITY: 0 -30 POUNDS WITH KS-12X12 GYRO

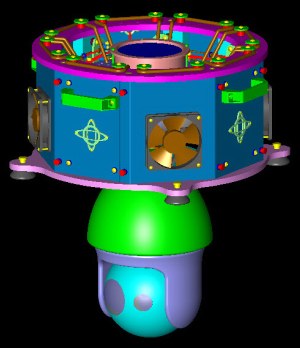

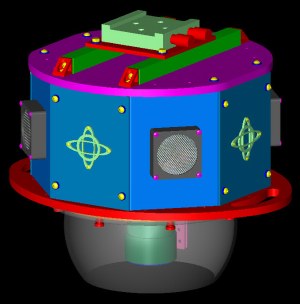

VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL
